Peltec PCB Assembly Jigs
Part Number
Peltec PCB Assembly Jigs
- Holds circuit boards & components
- Holds components firmly in place
Only %1 left
-
Global Partner
-
90,000+ Products
-
Over 550 Direct Agencies
-
Unrivalled Customer Focus
Description

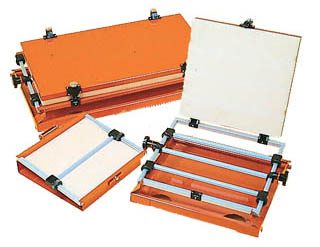

- For holding circuit boards and components in place during PCB assembly operations. The PCB is placed into the jig. An anti-static foam backed cover is then clamped over the PCB allowing the board to be turned through 180° or to whichever angle is suitable. Components are held firmly in place while lead cutting, soldering, bending operations are completed. Additional sliding rails available to increase the number of boards per unit. Models PCSA-2 and PCSA-3 come with 2 sliding rails and 1 central removable rail.
Information
